Ceramic Fiber Module
Keywords:
Ceramic Fiber Module
Classification:
- Details
-
CCFR module is made from compressed ceramic fiber blanket. The module is specially designed to meet the thermal insulation requirements of industrial furnaces in some special thermal conditions. CCFR module is produced with various anchoring systems to enable quick, easy and efficient installation in most furnace linings. Module linings can increase the furnace productivity and reduce the maintenance costs.
Features
● Fast and easy installation
● Fast and easy repair
● Fast temperature cycling
● Low installation and repair costs
● Low heat storage

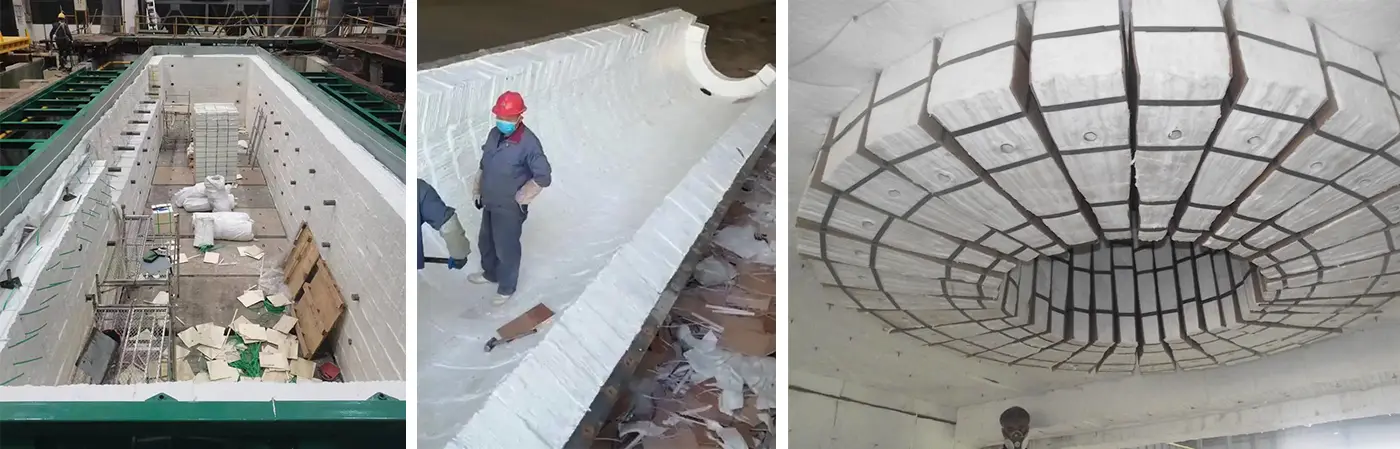

Typical Applications
● Petrochemical
● Refining, iron and steel
● Non ferrous
● Ceramic and glass
● Heat treatment
Typical Parameters
Description CCFR
STD MODULECCFR
HA MODULECCFR
HZ MODULEClassification Temperature (℃） 1260 1350 1430 Chemical Composition (%) Al2O3 ≥43 ≥52 ≥35 SiO2 ≥54 ≥47 ≥49 ZrO2 -- -- ≥15 Color White White White Permanent Linear Shrinkage 1000℃x24h≤2.5 1200℃x24h≤3.0 1350℃x24h≤3.0 Density (kg/m3) 160-220 160-220 160-220 Thermal Conductivity (W/m.K) 400℃ 0.10 0.10 0.10 600℃ 0.18 0.16 0.15 800℃ 0.20 0.20 0.19 1000℃ 0.27 0.26 0.26

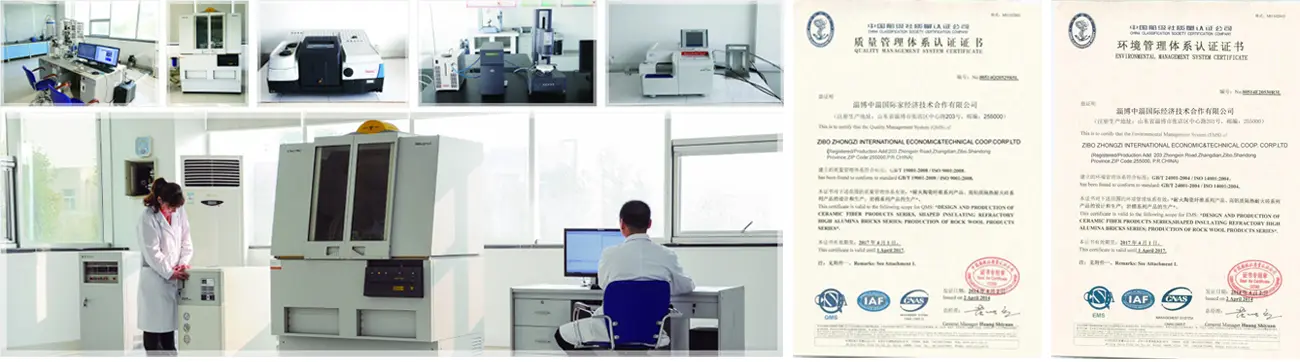

Quality Control
SHANDONG HIKING INTERNATIONAL COMMERCE GROUP CO.LTD Founded in 2002. our company is located in Qingdao city, Shandong Province.It has developed into one of the largest manufacturers of refractory fibers in Asian areas through many years struggle. At present, our factory has more than 600 employees with total areas of nearly 50.000 ㎡. We can produce all kinds of Ceramic Fiber Products such as Ceramic Fiber Blanket, Ceramic Fiber Board, Ceramic Fiber Paper, Ceramic Fiber Bulk, Ceramic Fiber Module etc. with annual capacity of more than 8 thousand tons.

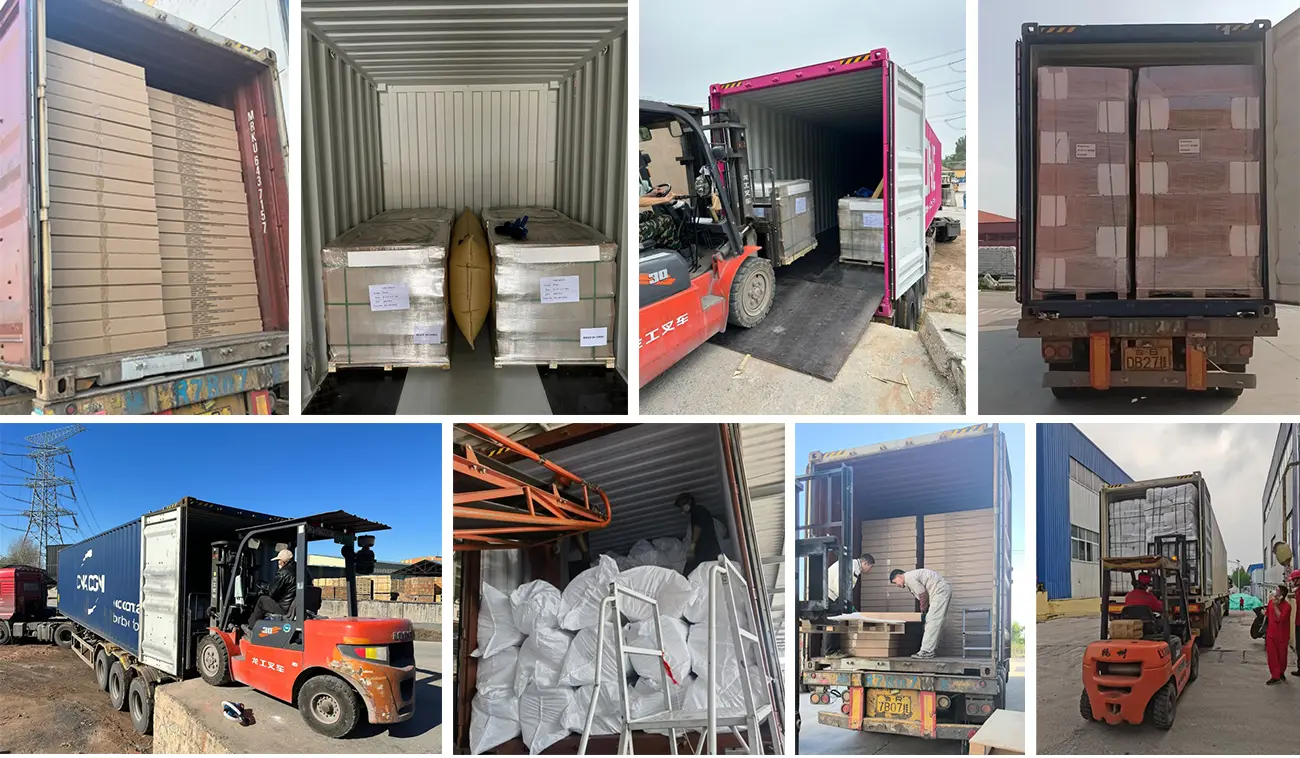

Packing & Shipping
In the recent years’ development,we are owning eighteen of ceramic fiber blanket production linese sixteen lines are spun ceramic fiber type,two is blown ceramic fiber type;one process vacuum form ceramic fiber products line;two ceramic fiber module lines;one ceramic fiber paper line. At the same time, our factory has been keeping touch with the most authoritative technical research centers for many years, we are improving ourselves in production all the time, such as the new products’creation, manufacturing design , after-sale service.
Relying on consummate manufacturing technology and abundant technical power which is the guarantee of product quality, our company has passed 9001:2000 Quality Management System Attestation in advanced the other company.
Our products are sold to many foreign countries suchas :KOREA,JAPAN,USA,SAUDIARABIA, UK, GERMANY, TURKEY,PK,MALAYSIA,DUBAI,CHILE,VIETNAM and SWITERLAND etc.we also had continuously developed new products and strengthened after-sales service in metallurgy, electric power, petroleum, chemical industry as well as many other fields, greatly meeting market demand.
