Ceramic Fiber Blanket
Keywords:
Ceramic Fiber Blanket
Classification:
- Details
-
CCFR blanket is high strength, needled insulating blanket that is made from CCFR bulk. The combination of long spun fibers and needling operation produce tough, resilient and strong blankets, which resist tearing both before and after heating. CCFR Blanket is completely inorganic and available in a variety of temperature grades, densities, and sizes. CCFR blanket can be folded, compressed and encapsulated to produce modules.
Features
● Excellent thermal shock resistance
● Excellent thermal stability
● High tensile strength
● Low thermal conductivity
● Low heat storage
Typical Applications
● Pipe wrap
● Furnace and kiln back-up insulation
● Annealing furnace linings
● Process heater linings
● Expansion joint seals
Typical Parameters
Description CCFR STD BLANKET CCFR HA BLANKET CCFR HZ BLANKET Classification Temperature (℃） 1260 1350 1430 Chemical Composition (%) Al2O3 ≥43 ≥52 ≥35 SiO2 ≥54 ≥47 ≥49 ZrO2 -- -- ≥15 Color White White White Shot Content (%) ≤15 ≤15 ≤12 Permanent Linear Shrinkage 1000℃x24h≤2.5 1200℃x24h≤3.0 1350℃x24h≤3.0 Density (kg/m3) 64 96 128 96 128 96 128 Tensile Strength (Kpa) 30 50 70 50 70 50 70 Thermal Conductivity (W/m.K) 200℃ 0.07 0.06 0.06 0.06 0.06 0.06 0.06 400℃ 0.12 0.11 0.10 0.11 0.10 0.11 0.10 600℃ 0.20 0.19 0.18 0.18 0.16 0.16 0.15 800℃ 0.30 0.23 0.20 0.22 0.20 0.21 0.19 1000℃ 0.40 0.32 0.27 0.30 0.26 0.30 0.26
Quality Control
SHANDONG HIKING INTERNATIONAL COMMERCE GROUP CO.LTD Founded in 2002. our company is located in Qingdao city, Shandong Province.It has developed into one of the largest manufacturers of refractory fibers in Asian areas through many years struggle. At present, our factory has more than 600 employees with total areas of nearly 50.000 ㎡. We can produce all kinds of Ceramic Fiber Products such as Ceramic Fiber Blanket, Ceramic Fiber Board, Ceramic Fiber Paper, Ceramic Fiber Bulk, Ceramic Fiber Module etc. with annual capacity of more than 8 thousand tons.
Packing & Shipping

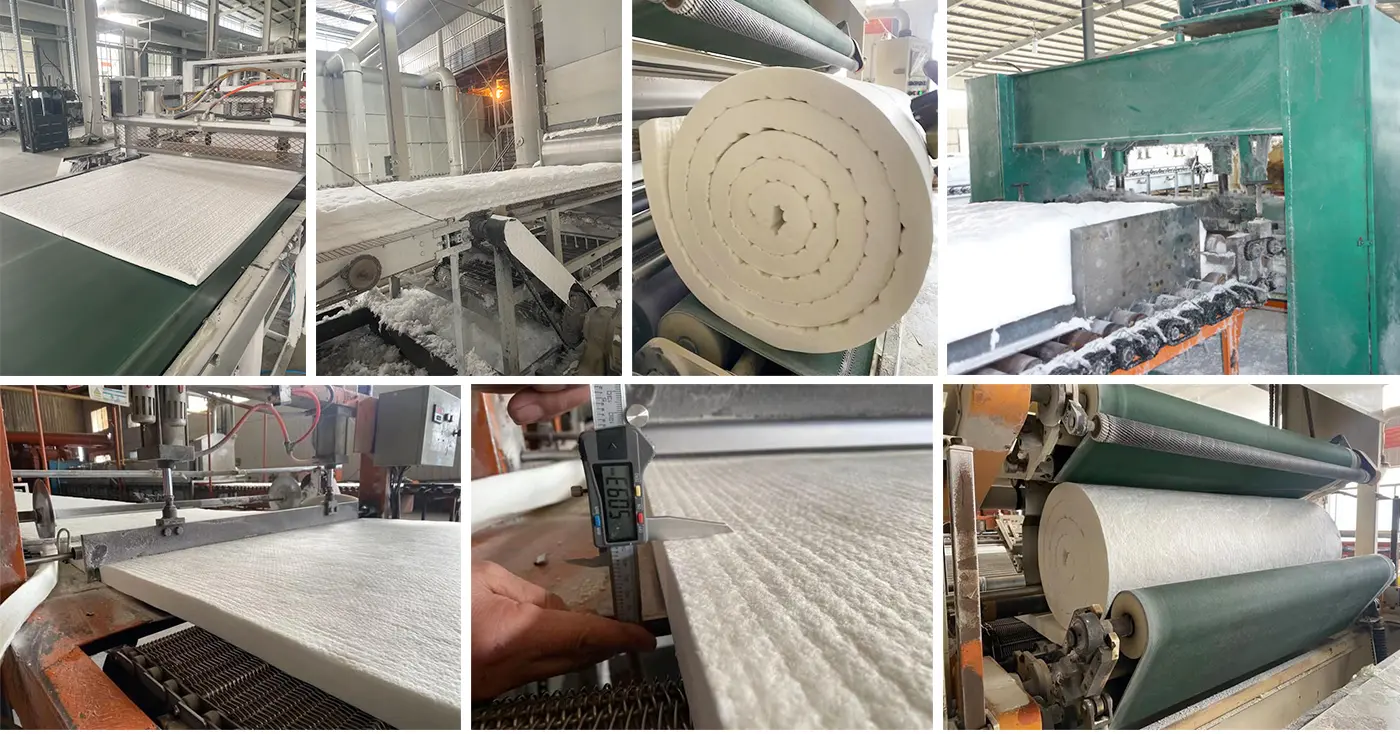

In the recent years’ development,we are owning eighteen of ceramic fiber blanket production linese sixteen lines are spun ceramic fiber type,two is blown ceramic fiber type;one process vacuum form ceramic fiber products line;two ceramic fiber module lines;one ceramic fiber paper line. At the same time, our factory has been keeping touch with the most authoritative technical research centers for many years, we are improving ourselves in production all the time, such as the new products’creation, manufacturing design , after-sale service.
Relying on consummate manufacturing technology and abundant technical power which is the guarantee of product quality, our company has passed 9001:2000 Quality Management System Attestation in advanced the other company.
Our products are sold to many foreign countries suchas :KOREA,JAPAN,USA,SAUDIARABIA, UK, GERMANY, TURKEY,PK,MALAYSIA,DUBAI,CHILE,VIETNAM and SWITERLAND etc.we also had continuously developed new products and strengthened after-sales service in metallurgy, electric power, petroleum, chemical industry as well as many other fields, greatly meeting market demand.
