Insulation Brick
Keywords:
Insulation Brick
Classification:
- Details
-
CCFR insulation brick is made from high-purity refractory powder and organic fillers which burn out during manufacture to five a uniform and controlled pore sture. The brick is compressed in a vacuum and sintered under high temperature. CCFR Insulating Firebrick is widely used as hot face refractory lining or back-up insulation in various kinds of industrial furnaces.
Features
● Excellent thermal shock resistance
● Accurate and customized dimension
● High crushing strength
● Low thermal conductivity
● Low heat storage
Typical Applications
● Metallurgy industry
● Petrochemical industry
● Ceramics industry
● Aluminum industry
● Glass industry
23L 23 23HS 23CA 25 25HS 26 26HS 28 30 32 Classification Temperature
ASTM C155-97℃
°F
1260
2300
1260
2300
1260
2300
1260
2300
1370
2500
1350
2500
1430
2600
1430
2600
1540
2800
1650
3000
1760
3200
Bulk Density
ASTM C134-95g/cm3
lb/ft3
0005
31
0.60
37
0.67
42
0.50
31
0.80
50
1.10
69
0.80
50
0.90
56
0.90
56
1.03
64
1.25
78
Cold Crushing Strength
ASTM C133-97Mpa
lb/in2
10
145
1.2
170
2.1
305
1.0
145
2.0
284
6.0
870
2.0
284
4.0
580
2.6
370
2.8
398
3.4
484
Modulus of Rupture
ASTM C133-97Mpa
lb/in2
0.7
101
0.9
128
1.3
189
0.6
101
1.2
170
3.1
450
1.5
218
2.5
362
1.6
232
1.7
247
2.0
290
Permanent Liner Change
ASTM C210-95%
℃ x 24hrs
0
1230
0
1230
-0.2
1230
-0.2
1230
-0.3
1350
-0.3
1350
-0.5
1400
-0.5
1400
-0.8
1510
-0.9
1620
-0.9
1730
Thermal Conductivity
ASTM C182-88(W/m.k)
400℃ 0.15 0.17 0.21 0.12 0.24 0.32 0.24 0.29 0.30 0.40 0.49 600℃ 0.17 0.19 0.25 0.14 0.28 0.36 0.27 0.32 0.32 0.42 0.50 800℃ 0.19 0.22 0.30 0.17 0.32 0.40 0.30 0.35 0.35 0.44 0.51 1000℃ 0.22 0.25 0.35 0.19 0.37 0.45 0.32 0.38 0.38 0.45 0.53 1200℃ -- -- -- -- -- -- 0.35 0.41 0.39 0.47 0.55 Chemcial Analysis Al2O3 % 45 45 45 37 50 50 55 55 65 72 76 Fe2O3 % 1.0 1.0 1.0 0.7 1.0 1.0 0.9 0.9 0.7 0.6 0.4 SO2 % 50 50 50 44 45 45 42 42 32 26 22 CaO -- -- -- 15 -- -- -- -- -- -- -- K2O+Na2O 1.1 1.1 1.1 0.8 1.1 1.1 1.0 1.0 0.8 0.2 0.1 Warehousing & Shipping
Quality Control
SHANDONG HIKING INTERNATIONAL COMMERCE GROUP CO.LTD Founded in 2002. our company is located in Qingdao city, Shandong Province.It has developed into one of the largest manufacturers of refractory fibers in Asian areas through many years struggle. At present, our factory has more than 600 employees with total areas of nearly 50.000 ㎡. We can produce all kinds of Ceramic Fiber Products such as Ceramic Fiber Blanket, Ceramic Fiber Board, Ceramic Fiber Paper, Ceramic Fiber Bulk, Ceramic Fiber Module etc. with annual capacity of more than 8 thousand tons.

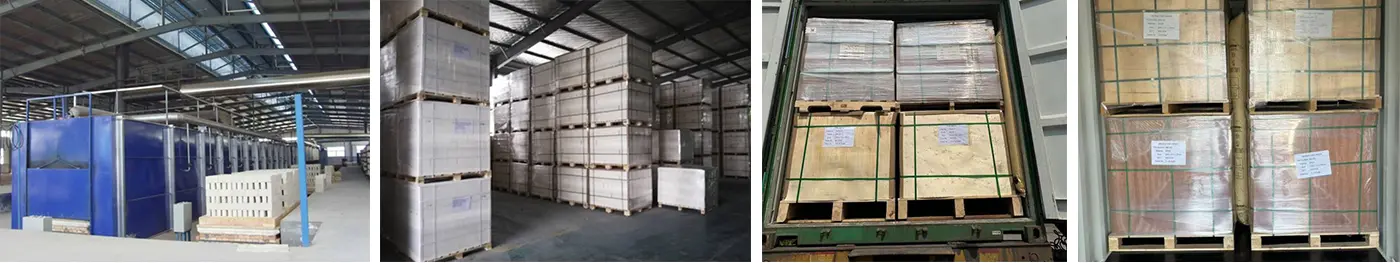

Packing & Shipping
In the recent years’ development,we are owning eighteen of ceramic fiber blanket production linese sixteen lines are spun ceramic fiber type,two is blown ceramic fiber type;one process vacuum form ceramic fiber products line;two ceramic fiber module lines;one ceramic fiber paper line. At the same time, our factory has been keeping touch with the most authoritative technical research centers for many years, we are improving ourselves in production all the time, such as the new products’creation, manufacturing design , after-sale service.
Relying on consummate manufacturing technology and abundant technical power which is the guarantee of product quality, our company has passed 9001:2000 Quality Management System Attestation in advanced the other company.
Our products are sold to many foreign countries suchas :KOREA,JAPAN,USA,SAUDIARABIA, UK, GERMANY, TURKEY,PK,MALAYSIA,DUBAI,CHILE,VIETNAM and SWITERLAND etc.we also had continuously developed new products and strengthened after-sales service in metallurgy, electric power, petroleum, chemical industry as well as many other fields, greatly meeting market demand.
