Alumina Lining Brick
Keywords:
Alumina Lining Brick
Classification:
- Details
-
Alumina lining is a high-performance wear-resistant material, mainly composed of high-purity alumina (Al2O3). It is widely used in the lining of various industrial equipment and machines, such as coal injection mills, ball mills, desulfurization devices, centrifuges, blowers, etc. It can effectively resist the impact of materials on the pipe wall, protect the equipment from severe wear and corrosion, and extend the service life of the equipment.
Quantity of bricks
MM/KG Thickness of lined bricks Ratio(rectangle: trapezoid) 40mm 60mm 70mm 100mm Ф95XL:102 Ball mill (0.3T) 580 870 1015 1:5 Ф130XL:150 Ball mill (0.5T) 1200 1700 2045 4000 1:5 Ф150XL:180 Ball mill (1T) 1600 2400 2800 5700 1:2 Ф180XL:200 Ball mill (1.5T) 2300 3400 3950 7600 1:1 Ф200XL:260 Ball mill (3T) 3100 4600 5370 11000 2:1 Ф245XL:300 Ball mill (5T) 6700 7800 18000 3:1 Ф285XL:400 Ball mill (8T) 11000 13000 4:5 Dimension

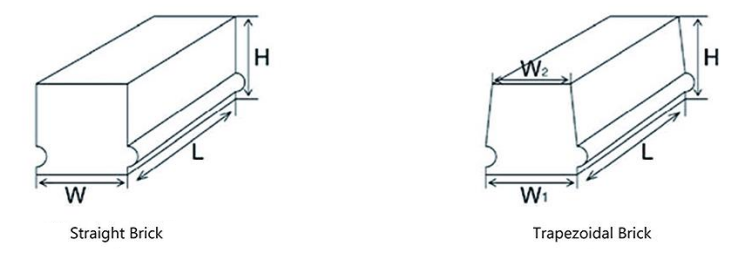

Size Length (mm) Width(mm) Width(mm) Height(mm) Straight brick 150 50 50 40/50/60/70/77/90 Trapezoidal brick 150 50 45 40/50/60/70/77/90 Half straight brick 75 50 50 40/50/60/70/77/90 Half trapezoidal brick 75 50 45 40/50/60/70/77/90 Splits 150 25 22.5/25 40/50/60/70/77/90
Alumina ceramic tiles
Alumina ceramic tiles are produced mainly from calcined alumina, with popular square shape, they are pasted in one paper with gap. They are used in pipe or curved equipment parts for wear resistance. The gap promise you can curve alumina ceramic tiles with any angle. They can combine with steel surface closely, and protect surface from impact. corrosion and wear, prolong the pipe or equipment life.
Alumina ceramic tiles are widely used in industrial production, especially in coal transportation, material conveying systems, powder-making systems, ash discharge, dust removal systems, and other heavily worn mechanical equipment of enterprises such as thermal power, steel, smelting, machinery, coal, mining, chemical industry, cement, ports, and docks. For example, ceramic lining plates, wear-resistant ceramic pipes, ceramic rollers, etc., different types of products can be selected according to different working conditions.
Quality Control
SHANDONG HIKING INTERNATIONAL COMMERCE GROUP CO.LTD Founded in 2002. our company is located in Qingdao city, Shandong Province.It has developed into one of the largest manufacturers of refractory fibers in Asian areas through many years struggle. At present, our factory has more than 600 employees with total areas of nearly 50.000 ㎡. We can produce all kinds of Ceramic Fiber Products such as Ceramic Fiber Blanket, Ceramic Fiber Board, Ceramic Fiber Paper, Ceramic Fiber Bulk, Ceramic Fiber Module etc. with annual capacity of more than 8 thousand tons.
Packing & Shipping
In the recent years’ development,we are owning eighteen of ceramic fiber blanket production linese sixteen lines are spun ceramic fiber type,two is blown ceramic fiber type;one process vacuum form ceramic fiber products line;two ceramic fiber module lines;one ceramic fiber paper line. At the same time, our factory has been keeping touch with the most authoritative technical research centers for many years, we are improving ourselves in production all the time, such as the new products’creation, manufacturing design , after-sale service.
Relying on consummate manufacturing technology and abundant technical power which is the guarantee of product quality, our company has passed 9001:2000 Quality Management System Attestation in advanced the other company.
Our products are sold to many foreign countries suchas :KOREA,JAPAN,USA,SAUDIARABIA, UK, GERMANY, TURKEY,PK,MALAYSIA,DUBAI,CHILE,VIETNAM and SWITERLAND etc.we also had continuously developed new products and strengthened after-sales service in metallurgy, electric power, petroleum, chemical industry as well as many other fields, greatly meeting market demand.
